MH-DSJ200单张点数机-上海麦行机械有限公司

产品介绍

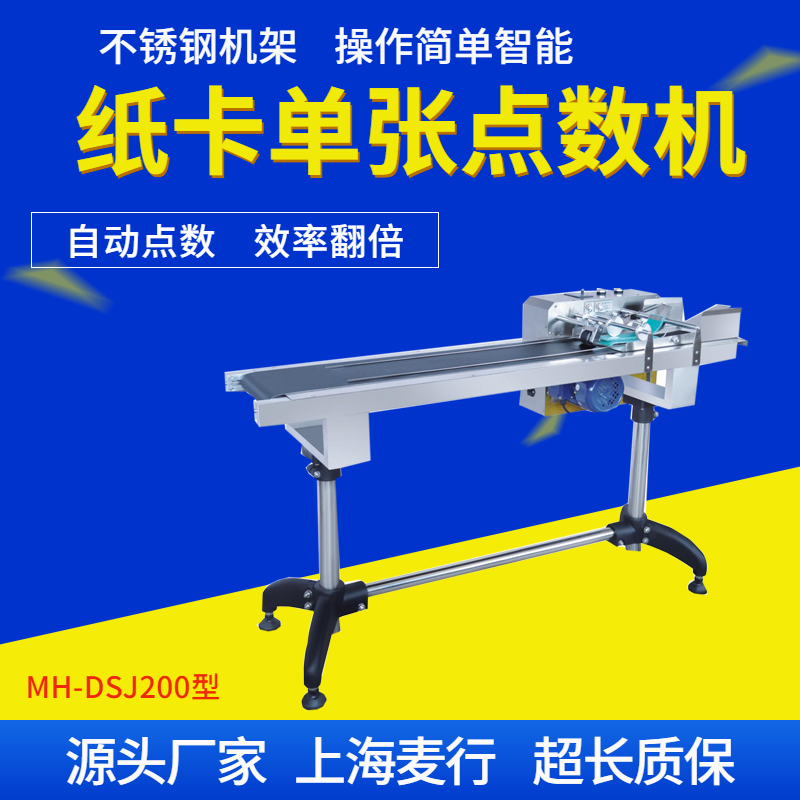

型号：MH-DSJ200

一、点数机用途：

用于将成叠的包装袋、卡类、纸张自动分开，成单页传送带上，用于清点数量，也可用于喷码机或激光机进行喷印喷刻生产日期、批号、防伪标记、图案等，从而减少人工分页的繁琐，充分发挥喷码机、激光机的高速喷印优点，提高喷印工作效率，并配备智能计数自动停机功能，方便生产管理。

二、点数机适用范围：

包装袋、塑料袋、纸盒、纸带、标签、纸片等

三、点数机特点：

1.变频调速，工业铝型材机架，高速自动分页60-500个/分钟；

2.可自动进行计数，也可自动设定分页数量，到要求分页数量自动停机，设定范围1-9999（需要与喷码机、激光机信号共享）

3.分页高速度、定位高精度、生产高效率；

4.结构设计合理，更换易损件简单快捷；

5.可选附件：自动收料装置、单独计数停机信号源；

6.可加喷码机，对产品进行喷码；

四、点数机技术参数：

1.电压及功率：220V /50HZ 180W

2.被分离物尺寸长度： 40--320mm

3.被分离物尺寸宽度： 60--280mm

4.被分离物的尺寸厚度： 0.08--3mm

5.整机尺寸：1500*350*750mm

6.材质：不锈钢

7.机器重量: 45kg

Model: MH - dsj200

Use of counting machine:

The invention is used for automatically separating stacked packaging bags, cards and paper into a single-page conveyer belt, counting the quantity, and also can be used for the production date, batch number, anti-counterfeiting marks, patterns and the like of the inkjet printing of the inkjet printer or the laser so as to reduce the complexity of manual paging, give full play to the advantages of high-speed inkjet printing of the inkjet printer and the laser, improve the inkjet printing working efficiency, and be provided with an intelligent counting automatic stop function, thereby being convenient to generate

Point machine scope of application:

Packaging bags, plastic bags, cartons, paper tape, labels, paper sheets, etc

Point machine features:

1. frequency conversion speed regulation, industrial aluminum profile rack, high-speed automatic paging 60 - 500 PCs / min 2. can automatically count, also can automatically set the number of pages, to require the number of pages automatically shut down, set the range of 1 - 9999 ( need to be shared with the code machine, laser signal )

3. high paging speed, high positioning accuracy and high production efficiency

4. reasonable structure design, easy and quick replacement of vulnerable parts

5. optional accessories: automatic feeding device, separate counting stop signal source

Point machine technical parameters:

1. voltage and power: 220v / 50hz 180w

2. dimension length of separated object: 40 - 320 mm

3. dimension width of separated object: 60 - 280mm

4. dimension thickness of the separated object: 0.08 - 3mm

5. overall dimensions: 1500 * 350 * 750mm

6. material: stainless steel

7. machine weight: 40 kg
