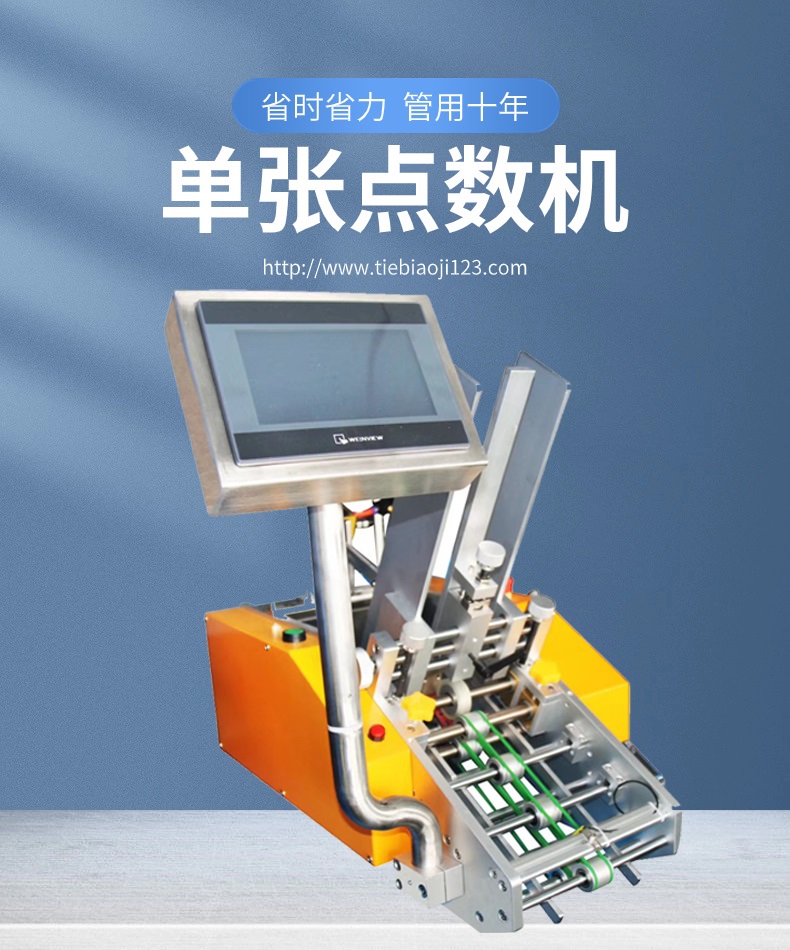

MH-DSJ300单张点数机-上海麦行机械有限公司

产品介绍

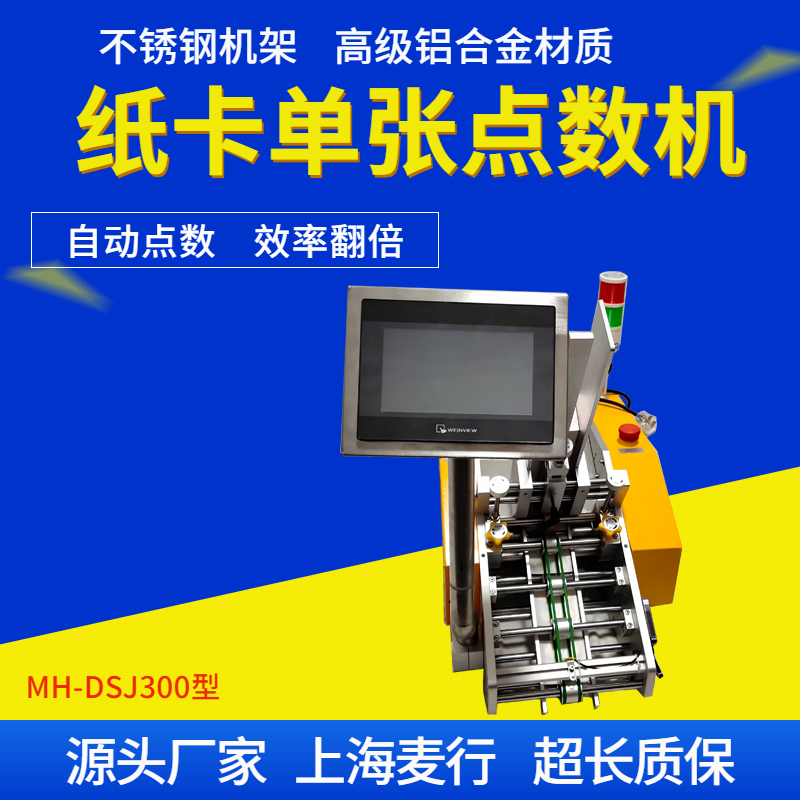

型号：MH-DSJ300

一、点数机适用范围：

本产品适用于将整叠片状的产品如：明信片、贺卡、挂牌、包装袋、说明书、宣传海报及各种不同尺寸的折叠状产品；

二、点数机用途：

点数机就是将各种不同折叠状的产品自动分开计数。也可以轻松的整合到相关的设备中作自动分卡、配合各种自动包装线使用

三、主要性能和特点：

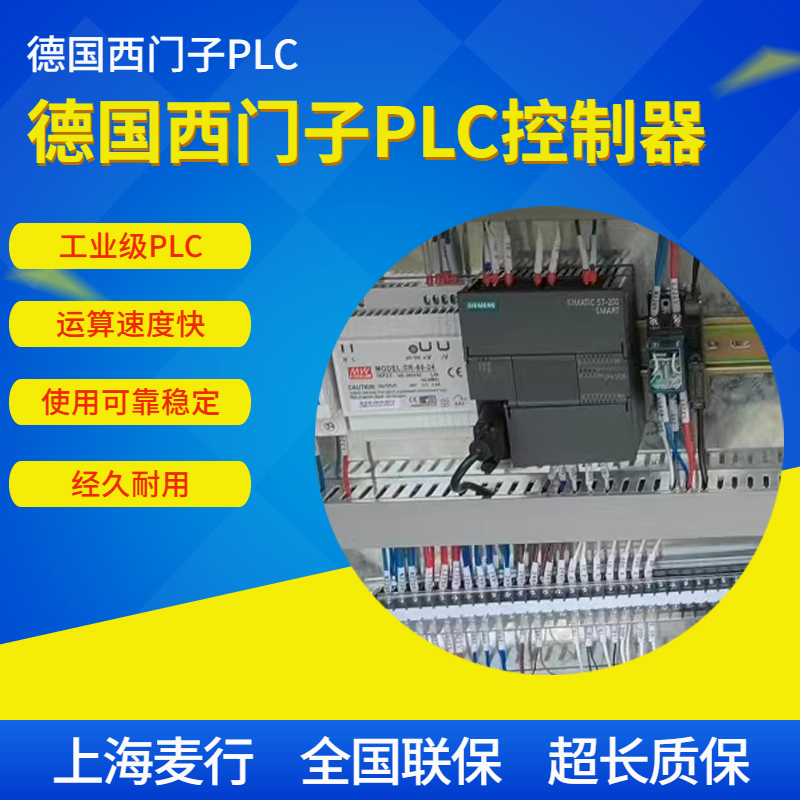

1.伺服电机控制操作系统，PLC控制器以及触控界面，操作简单。各种设备、操作均可在触摸屏上轻松完成，同时具有储存功能，设置好相关数据开机自动操作。

2.伺服电机最高速度可达到50米/分钟

3 自动打卡机对接全自动包装机，根据不同的包装数量最快速自动发卡

4 漏卡无卡自动报警功能，可选择发单张、多张及连续发卡功能

5 采用光电控制，开启总电源开关后，光电感应，自动发卡

与自动化包装设备的匹配，真正实现一体化自动包装

6 系统本着带有多项功能设定，包括预发卡长度、每次设定发卡数量、重卡时有自动报警等功能，实时在线控制

7 结构设计合理，更换易损件简单快捷。

四、技术参数：

点数速度：0-50米/分钟（与产品尺寸有关系）

产品厚度：0.05-3mm

产品尺寸：长50-300mm

宽110-300mm

电压功率：220V/450W

外形尺寸：7000*700*550mm

机器重量：30公斤

Model: DSJ300
Scope of application:

this product is suitable for the whole laminated products such as: postcards, greeting cards, listing, packaging bags, brochures, posters and various sizes of folding products;
Purpose: the counting machine is to separate and count the products with different folding shapes automatically. Can also be easily integrated into the relevant equipment for automatic cards, with a variety of automatic packaging line use

Key performance and features:
1. servo motor control operating system, PLC controller and touch interface, simple operation. All kinds of equipment, operation can be easily completed on the touch screen, at the same time has the storage function, set up the relevant data boot automatic operation.
2. the maximum speed of the servo motor can reach 50 meters per minute
3 automatic card printing machine docking automatic packaging machine, according to the different packaging quantity of the fastest automatic card
4 card leakage without automatic alarm function, can choose to send a single, multiple and continuous card issuing function
5 using photoelectric control, open the total power switch, photoelectric induction, automatic card
Match with the automatic packaging equipment, truly realize the integration of automatic packaging
6 system with a number of functional settings, including pre-issuance card length, each set number of cards, heavy card automatic alarm and other functions, real-time online control
7 reasonable structure design, easy and quick replacement of vulnerable parts.

Technical parameter
Point speed: 0 - 50 m / min ( related to product size )
Product thickness: 0.05 - 3mm
Product size: length 50 - 300mm width 110 - 300mm
Voltage power: 220v / 450w
Outline dimensions: 700 mm* 700mm * 550mm
Machine weight: 35 kg
