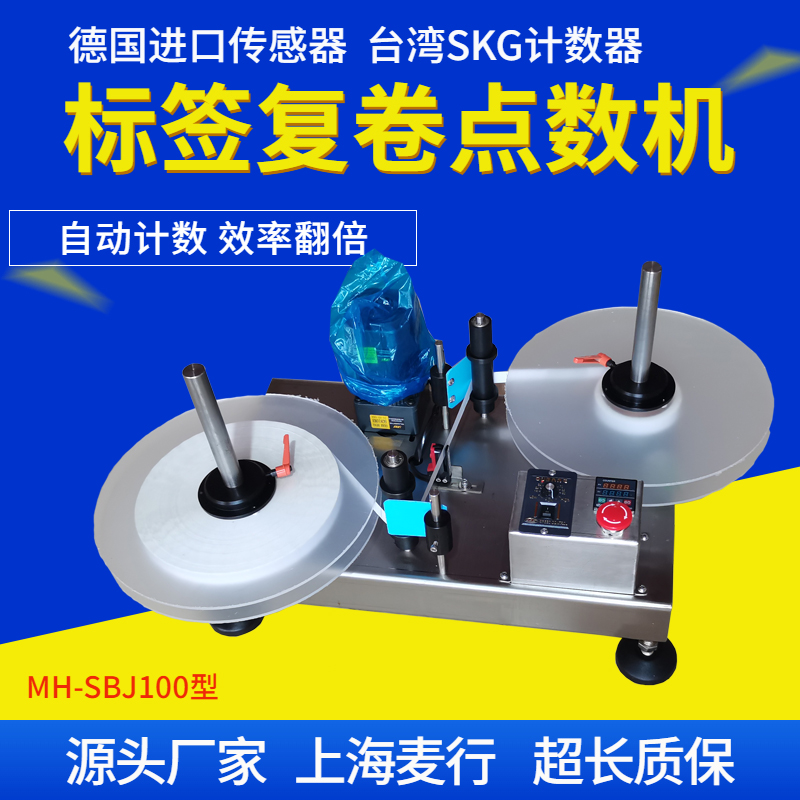

型号：MH-SBJ100
加工定制：是
品牌：麦行机械
型号：SBJ100
产品别名：标签点数机
类型：复卷机
用途：纠偏,分卷、点数
售后服务：一年免费保修，终身维护
一、基本用途：
标签点数机适用于制药、食品、日化等行业。
标签点数机适合用于，标签卷筒入仓库前的，整卷标签张数的清点。
二、工作原理：
通电机带动标签转动，用检测光电来识别标签，并发出感应信号传输给计数器，计数器通过显示屏来显示当前标签的数量。
三、适用范围 ：
1、适用材料：不干胶标签、胶袋、电子监管码、条形码等。
2、应用行业：广泛应用于食品、医药、化妆品、日化、电子、五金、塑胶等行业。
四、功能特点：
1、结构合理，操作方便，版面简单，易懂。只需手工放入一卷标签，开启电源，点击启动按钮，设备就可以自动数标。
2、取放原料方便，快速。
3、外形美观大方，机型牢固，运行平稳。
4、稳定性选择,中档性能配置和高档性能配置,满足不同客户需求。
5、计数稳定,采用德国进口光电检测。
6、各零部件全部采用不锈钢和铝合金制作，达到厂家要求，外观新颖美观。
五、技术参数：
1、适用标签宽度（mm）：0mm～120mm
2、适用标卷外径（mm）：φ330mm
3、适用标卷内径（mm）：3”(φ76mm)
4、纠偏方式：机械纠偏
5、运行速度（m/min）：0～40m/min,
6、计数速度：0～500pcs/分
7、重量（kg）：约28kg
8、主机功率：60W
9、电压(V) ：220V, 50HZ
10、设备外形尺寸（mm）（长×宽×高）：760mm×580mm×580mm
Model: MH-sbj100
Basic use:
Label counting machine is suitable for pharmaceutical, food, daily chemical and other industries.
Label counting machine is suitable for, label drum into the warehouse, the whole volume of label sheet count. Simple operation, just manually put a roll of labels, turn on the power supply, click on the start button, the equipment can be automatically numbered. Precision, speed, high cost performance is the characteristics of this product.
Label point machine biggest bright spot: can be reversed, for some labels have positive and negative requirements is extremely easy.
Label counting machine is suitable for label drum into the warehouse, the whole volume of label sheet count.
Scope of application:
Applicable materials: sticker, adhesive bag, electronic supervision code, bar code, etc.
Application industry: widely used in food, medicine, cosmetics, daily chemical, electronic, hardware, plastic and other industries.
Functional characteristics:
The structure is reasonable, the operation is convenient, the layout is simple, easy to understand.
The raw materials are convenient and fast.
The shape is beautiful and generous, the model is firm, and the operation is stable.
Stability selection, mid-range performance configuration and high-end performance configuration to meet different customer needs;
The counting is stable, and the photoelectric detection imported from Germany is adopted;
All parts and components are made of stainless steel and aluminum alloy, meet the requirements of the manufacturer, novel and beautiful appearance.
Technical parameter:
Applicable label width ( mm ): 0mm ~ 120mm;
Applicable outside diameter of label roll ( mm ): φ 330mm;
The inner diameter ( mm ): 3 " ( φ 76mm ) of the label is applicable;
Correction method: mechanical correction;
Operating speed ( m / min ): 0 ~ 40m / min;
Min counting speed: 0 ~ 500 PCs / min;
Weight ( kg ): approx. 28 kg;
Host power: 60w;
Voltage ( v ): 220v, 50hz;
Dimensions ( mm ) ( length × width × height ): 760 mm × 580 mm × 580 mm;
